Three-phase transformers

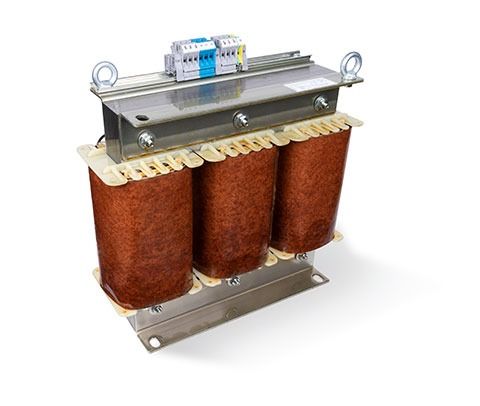

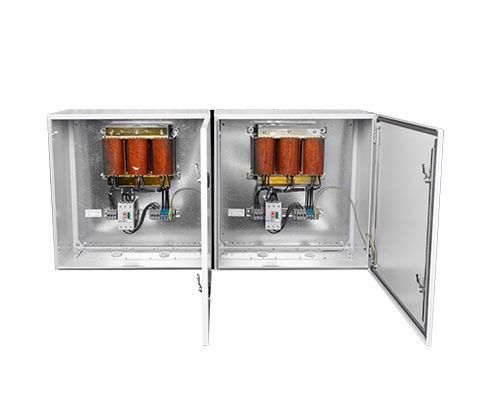

AEE's three-phase transformers offer high safety, long lifespan and reliability. The fully custom-made three-phase transformers can be manufactured in single pieces, small runs but also larger runs, completely according to your specifications. Installation in a cabinet or panel integration is also possible.



A three-phase transformer is a high-power transformer used in a three-phase high-voltage grid to change the voltage level. If you are looking for high power transformers, Automatic Electric Europe's three-phase transformers offer the solution.

Description

Principle of three-phase transformers

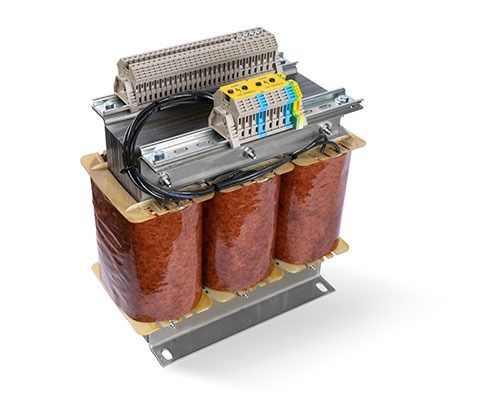

3 phase transformer drawingThree-phase transformers can be considered three coupled single-phase transformers, where the primary and secondary windings are applied to one magnetisable core. Each leg of the magnetisable core has 1 primary and 1 secondary winding. This input voltage is converted into a higher or lower voltage via a star (Y) or in a triangle (Δ or D) circuit, which is also executed in a star (Y) or in a triangle (Δ or D). Both the primary and secondary version are determined depending on what is required.



Features of the three-phase transformer:

  • Three-phase transformers designed as auto-transformers or as separate windings.
  • Standard frequency 50/60Hz
  • Air cooled
  • Insulation class E
  • Protection class IP00
  • Type of version, from UI60 to UI300 long side.
    (see Dimensions tab for more information)
  • Built with touch-safe terminals
  • Reliable and long service life



Transformers can easily be overloaded briefly with 10-15%.
