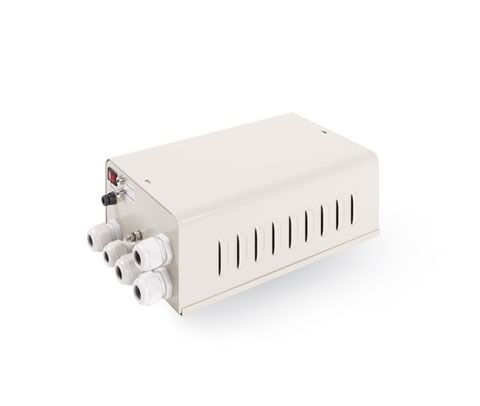

RectifierIf you are looking for a custom-made rectifier of good quality at an affordable price, AEE is the place to be. We have been building transformers and rectifiers for more than 40 years and know the market well. The rectifier power supplies (single-phase and three-phase) can be executed in various input and output voltages and powers. In addition, the rectifiers can be mounted in a enclosure or on a mounting plate, making them easy to place on a panel.
The single-phase rectifiers in our standard version are built with a flattening capacitor to achieve a ripple voltage of <5%. The standard ripple voltage of a three-phase rectifier is 4.2%. |
Description
Characteristics of a rectifier
With a rectifier, alternating current can be converted into direct current. A rectifier is an electronic circuit that can be placed in enclosures or on a mounting plate and is available in various versions from AEE.
Single-phase and three-phase

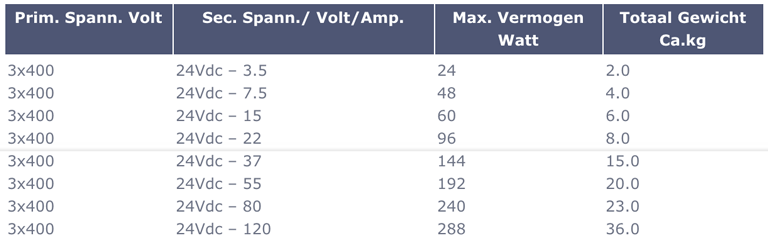

At AEE, you will find both single-phase and a three-phase rectifiers with maximum powers of 360 and 288 watts respectively. No matter which rectifier you choose, its quality is guaranteed.

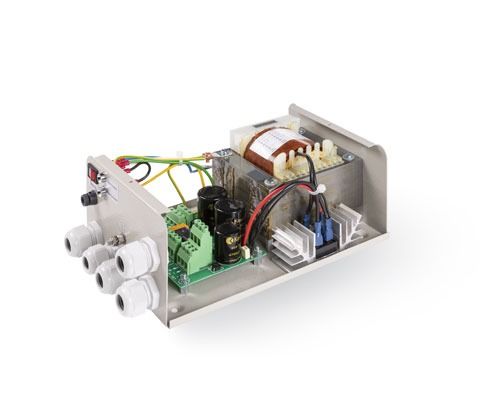

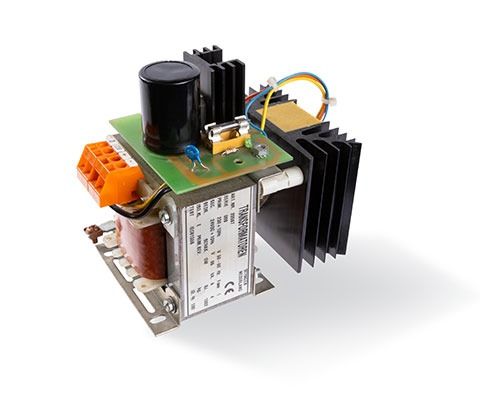

The rectifier transformer is supplied with a printout for powers up to 15A 24Vdc. The higher power ratings from 16A > 24Vdc onwards are equipped with a large heatsink, bridge cell and electrolyte next to/behind the transformer.
Options
Rectifier options:
- Installation in an enclosure with a protection rating starting from IP21
- Resistive load or capacitative load
- Encapsulated variants
- Earthing screens
- Fuse
- Dinrail
Certification/safety
All AEE transformers are manufactured according to the NEN- IEC61558 standard and are CE marked. AAE transformers can also be built with Lloyds quality mark, and according to the UL/CSA standards.
AEE also helps the customer with safety. We use our own quality system, which can be adapted to the wishes and requirements of the customer.
